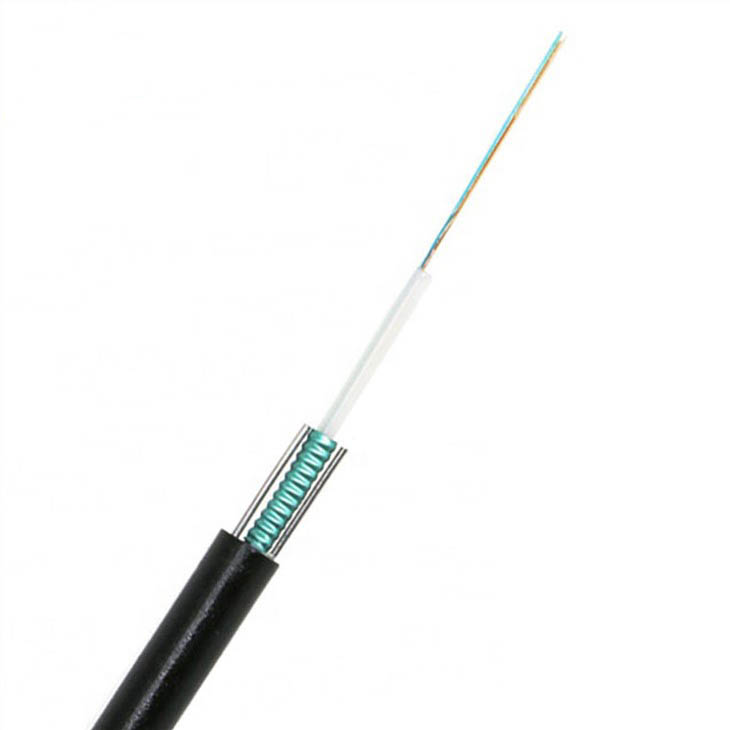

Central Bundled Outdoor Fiber Cable GYXTW

GYXTW have two parallel round steel wires enhance tensile strength,tension-resistance and crush resistance; GYXTW Good mechanical performance,jacket wtih good ultra violet resistant property; GYXTW small outer dismeter,lightweight,tight structure,excellent bending property and suitable to insllation and operation......

Central Bundled Outdoor Fiber Cable GYXTW

1. Introduction of fiber optical fibers:

GYXTW optical cable The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

2. Applicantions:

- Overhead
- throught pipe
- Buried

Buried GYXTW Cable

Central Bundled Outdoor Fiber Cable GYXTW

Direct Buried or Overhead

3. Cable Descriptions：

Fiber count(G652D)	core	2/4/6/8	10/12
Outer Diameter(mm)	mm	8.3	9.0
Nominal weight	(kg/KM)	66	82
Max. tensile strength(N)	Short-term Long-term	1500 600
Min Bending Radius	Dynamic Static	20D 10D

4.Performance characteristics:

-Excellent water blocking layer, with good anti-seepage ability;
-The outer sheath is bonded with steel tape and metal is reinforced, with excellent tension performance;
-The central design of the beam tube minimizes the influence of the optical fiber on the anti-lateral force of the optical cable;

5.Details of picture:

Central Bundled Outdoor Fiber Cable GYXTW

Central Bundled Outdoor Fiber Cable GYXTW
