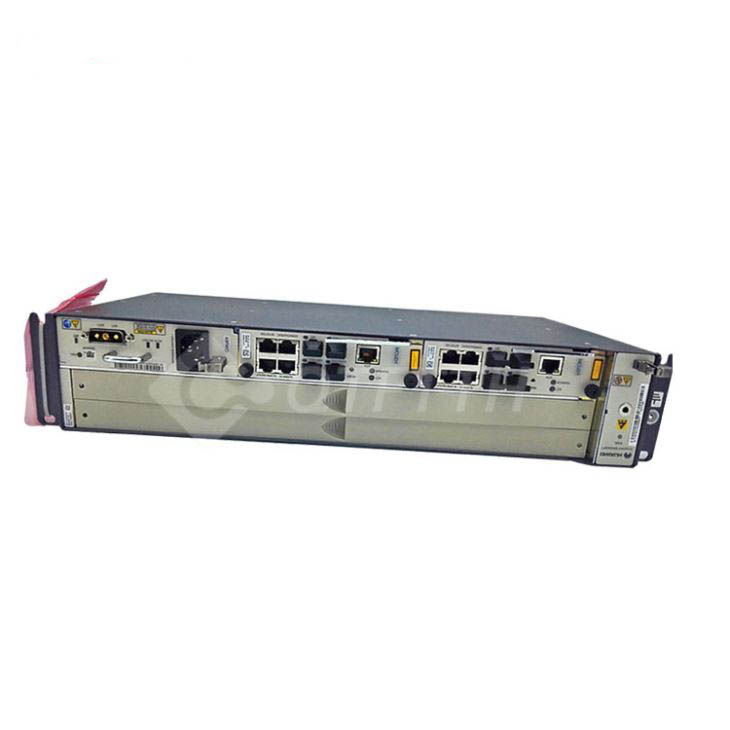

Huawei 2U OLT MA5608T

Huawei 2U OLT MA5608T Best price Big supply Brand new English version 2 slots Huawei 10G & 1G AC & DC Gpon OLT

1.Product description of the MA5608T

As the first aggregation OLT in the industry, The SmartAX MA5608T  integrates the aggregation and switching functions, provide the high-density GPON and Ethernet P2P access, abundant GE/10GE ports, high precision clock and strong platform capacity, provide the basic voice, high-speed internet, fluent video, steady TDM and the Ethernet private line services, which can improve the network reliability, reduce the investment in network construction, and reduce the O&M costs.

2.Product parameter of the MA5608T:

3.Product feature and application of the MA5608T:

 ● Aggregate Access:
 ● Ultra-high convergence switching capacity, 3.2T backplane capacity, 1920G switching capacity, 512G MAC address capacity;
 ● Ultra-high-density cascade capability, maximum support for 44-channel 10GE or 768 GE access, no additional investment aggregation switch.
 ● High Reliability:
 ● Highly reliable networking capabilities, support OLT dual hot backup, off-site capacity,
 upgrade business is not interrupted
 ● Complete QoS function, support traffic classification management, priority control, with paragraph control. H-QoS functions to meet SLA requirements for diverse business customers.
 ● End-to end high reliability design, uplink support BFD/Smart Link/LACP redundancy protection, support EPON TypeB / TypeD and GPON TypeB / TypeC line protection.
 ● Multi-scene access:
 ● A variety of E1 line access, support Native TDM or CESoP / SAToP function.
 ● Support E-LAN function to achieve internal traffic flow based on VLAN to meet the enterprise and campus network applications.
 ● Support IPTV users without convergence access, single-frame support 8000 multicast users and 4000 multicast channels.
 ● Smooth Evolution:
 ● EPON / GPON / 10G PON / 40G PON common platform to support smooth evolution, to meet the ultra-wideband access.
 ● Support IPv4 / IPv6 dual stack, support IPv6 multicast, to achieve the smooth evolution of IPv4 to IPv6.
 ● Green Technology:
 ● Unique chip technology, high-density 16 port GPON board power consumption does not exceed 73W.
 ● Support free board automatic power, fan intelligent speed, effectively reduce the idle power consumption.

4.Product details of the MA5608T:

 ● Small size control unit board contrast:
   The small size of the super control unit board (MCUmain control board)
 support the following functions:

 ● System control management unit..

 ● Active / standby switchover and load sharing.

 ●Maintain serial port CON and maintain network port ETH, support local and remote maintenance.

 ● Environmental monitoring access.
 ● Ethernet synchronization.
 ● Temperature reading and high temperature alarm.
 ● Fan frame monitoring and management.
 ● 7 Road alarm switch input, 1 alarm switch control output.
 ● Optical and Copper mixed access.

 ● 1G Control & Uplink Board (MCUN):
    H801 MCUN the functions of each module are as follows:
 ● Control module to achieve the management of the board and the business board.
 ● Logic module to achieve logic control.
 ● The power supply module provides working power for each function module in the board.
 ● The clock module provides the working clock for each function module in the board.

 ●The switch module provides GE/10GE interface to implement service switching and aggregation based on layer 2 or layer 3.
 --Provides 4 GE for upstream uplink interface.
 --2 GE/10GE are provided for GE/10GE exchange with each service board.
 --Provide 1 10GE, and standby H801MCUN to achieve load sharing.

 ● 10G Control & Uplink Board (MCUN1):
  H801 MCUN1 the functions of each module are as follows:
 ● Control module to achieve the management of the board and the business board.
 ● Logic module to achieve logic control and three clock functions.
 ● The power supply module provides working power for each function module in the board.
 ● The clock module provides the working clock for each function module in the board.
 ● The switch module provides GE/10GE interface to implement service switching and aggregation based on layer 2 or layer 3.
 --2 GE /10GE and 2 GE are provided for upstream uplink interface.
 --2 GE/10GE are provided for GE/10GE exchange with each service board.

 ● Power Board (MPWC):
 The function of each module of the H801MPWC board is as follows:
 ● H801MPWC board by a 3V3 power connector to introduce a road -48V power supply, through the filter circuit and current limiting protection circuit output to the backplane for the chassis other power supply.
 ● Check the reported circuit to the protection of the fuse for fault detection, the detected signal and the board in-position signal together reported to the main control board, and through the light display.
 ● Detection report circuit detection input undervoltage and input power supply.
 ● E2PROM circuit is user storage board manufacturing information.
 ● Introduce the 5V / 3.3V power supply from the backplane to power the internal chip in the board.
 ● Power Board (MPWD):
 The function of each module of the H801MPWD board is as follows:
 ● AC input, AC/DC changes, the output -48V (voltage adjustable ) to the system backplane.
 ● Support battery access, battery charge and discharge management by the monitoring board to achieve.
 ● Through the backplane to communicate with system, reported board hardware information, electronic tag information.
 ● Power board and monitoring board through the 485 protocol communication, to achieve voltage regulation, regulation and reporting of alarm information function.
 ● Monitoring board to support lead-acid battery management.
 ● Optocoupler control battery power down.
 ● Provide power distribution detection and reporting alarm function.
