ZTE 2Lans ONU F612; ZTE Gpon ONU F612 without wifi;
Brand new & Original, English version
1 year warranty & technical support
Support customized logo & software, remive brand logo;
Similar model: F412, EG8120L, HG8120C;......
ZTE 2Lans ONU F612:

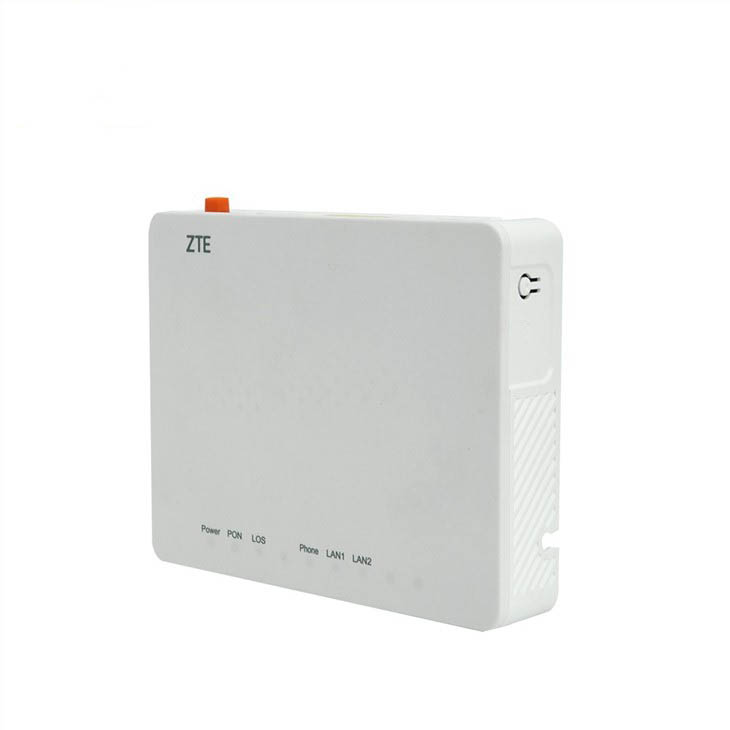

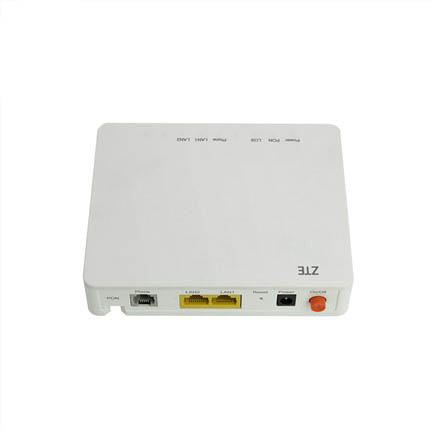

ZXHN F612 is a GPON Optical Network Terminal designed for FTTH scenario.
It provides subscribers rich, coloful, individualized, convenient and comfortable services including voice, video (IPTV) and high speed internet access.
It has a small, smart appearance and gree energy-saving advantage.
PRODUCTS DATASHEET:
-GPON interface: SC/UPC
-Ethernet interface: 2 RJ-45(10/1000 Base-T) interface, complying with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab to support 10/100Mbps auto-negotiation.
Optical Module:
-Receiving: 1480-1500nm
-Transmitting: 1290--1330nm
-Receiving Sensitivity: -28dBm
-Transmitting Optical Power: 0.5--5dBm
Main Function:
-Supported service : Internet IPTV;
-GPON: 8 T-CONTs, 32GEM Ports
-VLAN:802.1Q, 802.1P, 802.1ad
-MAC address tabke: 1K
-L3 function: DHCP server/Client, DNS Client, NAT
-IPv6: Dual Stack, DS-Lite;
-VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38
-Multicast group per user port: 256
-QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address;
