Integrated Fiber Fusion Splicer DVP-740;
Full automatic, semi-automatic and manual functions are optional to improve work efficiency
Brand new and English version
1 year warranty and technical support......

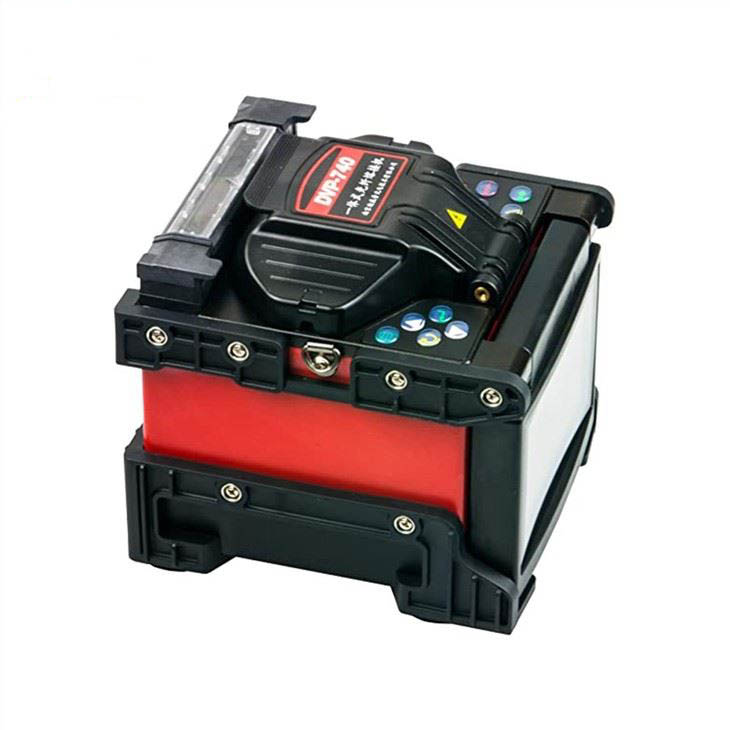

Integrated Fiber Fusion Splicer DVP-740:

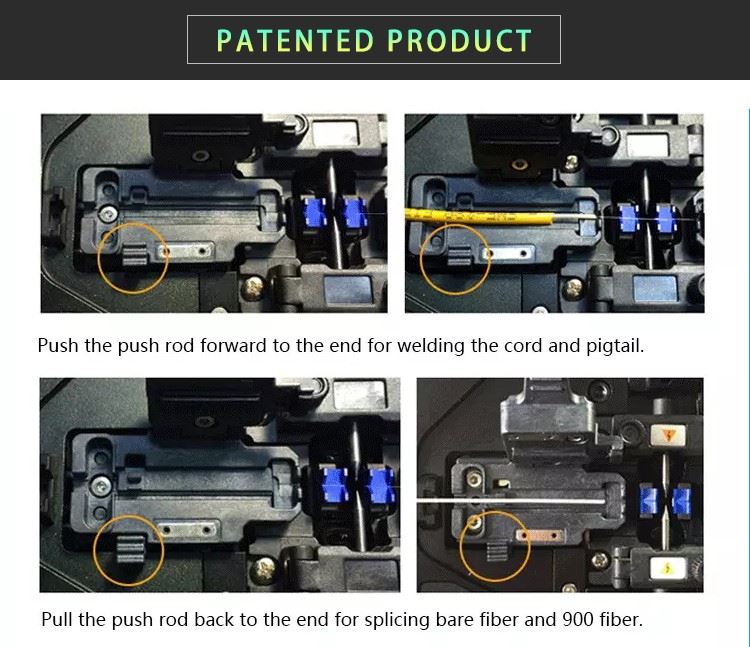

DVP-740 Fiber Fusion New multi-function fixture design, can splice various optical fibers without changing fixtures.
Fully automatic, manual, and semi-automatic functions are optional to improve engineering efficiency Innovative shock-proof shell design, shock-proof and drop-proof.
6.5Ah large-capacity lithium battery, which can be connected and heated more than 260 times after being fully charged.
PRODUCTS FEATURES:
-Compact & Light weight
-Applied for Fibers, Cables and SOC (splce-on connector)
Integrated Holder Design
-Fully Automatic, Semi-automatic and Manual Operation
-Shockproof, Drop resistance
-Power saving Function
-4.3 inch Color LCD monitor
-USB & DC interface
PRODUCTS PARAMETERS:
Applicable fibers:
SM, MM, DS, NZ-DS, EDF, Bending Loss Insensitive fiber(657), Pitail, Drop cable and connector
Fiber cleaved length:
8-22mm
Average Splice loss:
0.02dB9SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Tension test:
1.0N
Protection sleeve length:
20mm, 40mm, 60mm
Splice Program:
5 groups of preset programs, 75 group of manual setting
